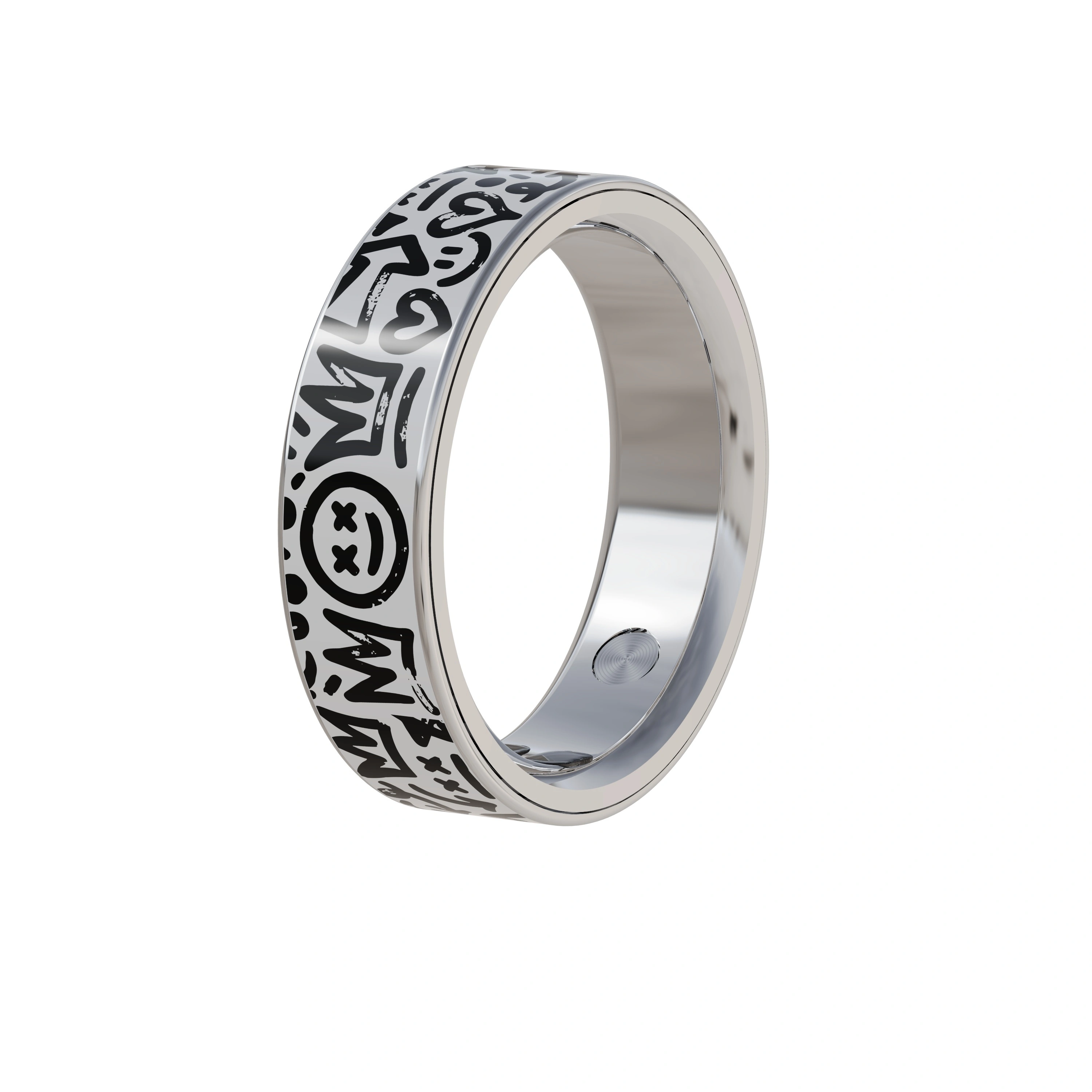

Goodway R23 Health Smart Ring for 24/7 Monitoring

Buyer's Snapshot

• Target Application: 24/7 health monitoring, sleep management, daily activity tracking

• Key Technical Feature or Component: AB2026B3 chipset with LC12S PPG sensor

• Minimum Order Quantity (MOQ): No minimum order requirement




Core Advantages & Technical Proof

• Connectivity & Integration: BLE 5.4; synchronization with Google Health Connect and Apple Health; compatible with Android 5.0+, iOS 9.0+, HarmonyOS 2.0+

• Power & Maintenance: 17mAh lithium polymer battery; 4–6 days battery life (24-hour wear); magnetic contact charging; recharge time <1.5 hours; OTA upgrade via mobile app

• Environmental / Durability: IP68 waterproof; operating temperature -20℃ to 50℃; storage temperature -30℃ to 70℃

• Accuracy / Performance: LC12S PPG sensor; CT7112 body temperature sensor; BMA510 G-sensor; supports heart rate, SpO2, HRV, sleep quality scoring and trend analysis

• Compliance / Standards: FCC, CE, ROHS, REACH, CCC, SRRC, MSDS, UN38.3




OEM / ODM Customization

• Hardware Customization: Composite outer ring supports customization of texture, color, and images; available in 8 sizes (#6–#13); optional ultra-low power motor

• Software / Firmware Customization: OTA upgrade supported via mobile app




Technical Specifications

• Chipset: AB2026B3

• Sensors: LC12S PPG sensor; CT7112 body temperature sensor; BMA510 G-sensor

• Connectivity: BLE 5.4

• Battery: 17mAh high-density lithium polymer; 4–6 days battery life; 25 days standby

• Operating Conditions: Operating -20℃ to 50℃; Charging 0℃ to 40℃; Working humidity 10%–90%RH (non-condensation); Storage -30℃ to 70℃; Storage humidity 5%–90%RH (non-condensation)

• Firmware: OTA upgrade via mobile app

• Software Compatibility: AIZO RING app; Android 5.0+, iOS 9.0+, HarmonyOS 2.0+; 30+ languages supported

• Certifications: FCC, CE, ROHS, REACH, CCC, SRRC, MSDS, UN38.3
